Description
| Specification | Description |
|---|---|
| Dimension Standard | ANSI B16.5, MSS SP44, Custom Drawings |
| Size Range | 1/2″ to 48″ |
| Pressure Classes | 150 LBS to 2500 LBS |
| DIN Standards | DIN2527, DIN2642, DIN2635, DIN2638, DIN2673 |
| BS Standards | BS4504, PN6 to PN40 |
| API Standards | PSI-2000/3000/5000/10000 |
| JIS Standards | 2220-2004 5k/10k/16k |
| Flange Face Types | FF (Flat Face), RF (Raised Face), RTJ (Ring Type Joint) |

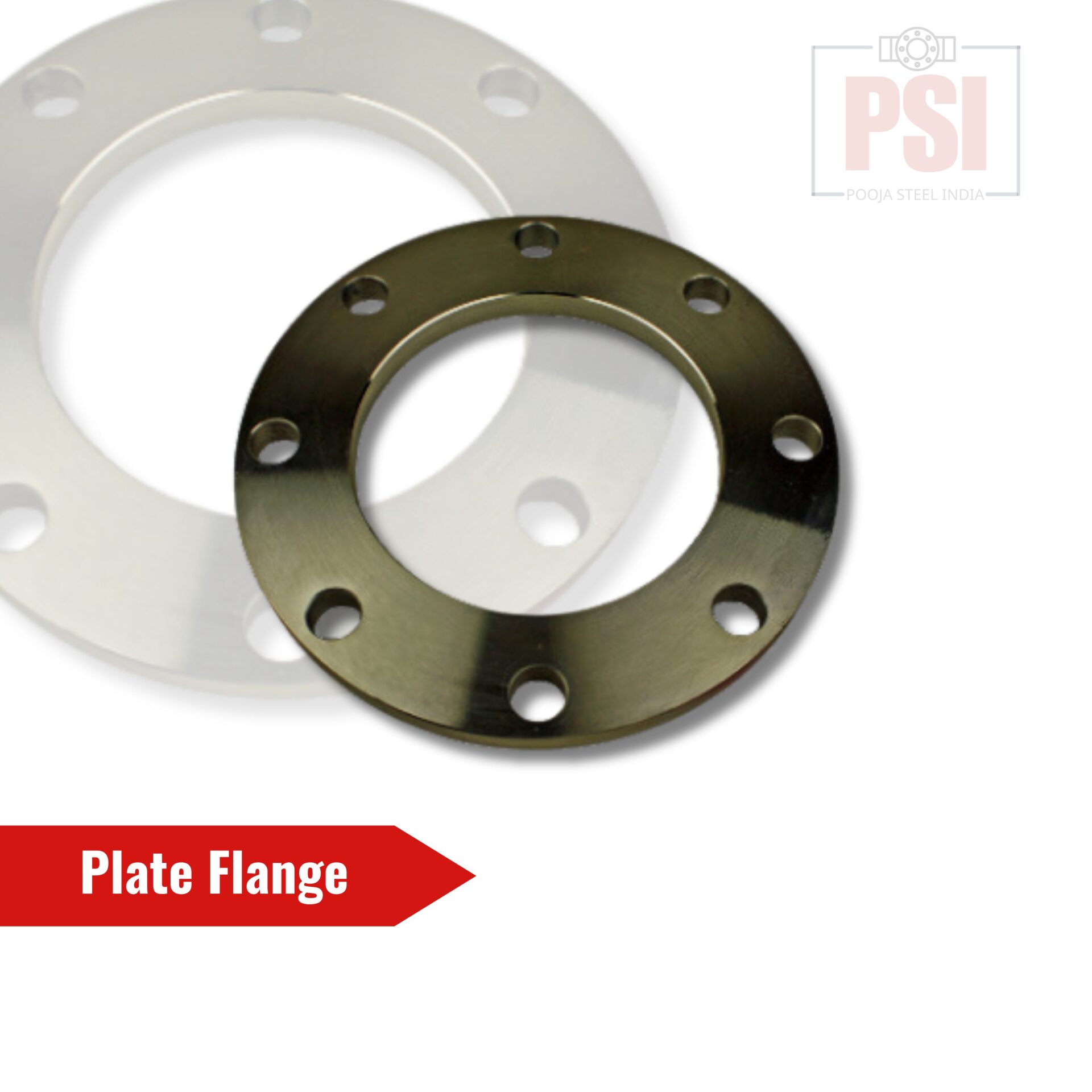

Plate flanges are available in a variety of materials and grades to suit different pressure and temperature requirements. Here are some common options:
- Stainless Steel: ASTM A 182, A 240 (See grades below – 304, 316, 321, 347, 904L)
- Duplex & Super Duplex Steel: ASTM / ASME A/SA 182 F 44, F 51, F 53, F 55, F 60, F 61
- Carbon Steel: ASTM / ASME A/SA 105, A 350, A 181 LF 2, A516 Gr.70, A36, A694 (**Cost-effective option for low-pressure applications**)
- Low Temp Carbon Steel: ASTM A350 LF2, LF3
- Alloy Steel: ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F22, F91
- Copper Alloy Steel: ASTM SB 61, SB62, SB151, SB152
- Nickel Alloy: ASTM SB564, SB160, SB472, SB162, etc.
